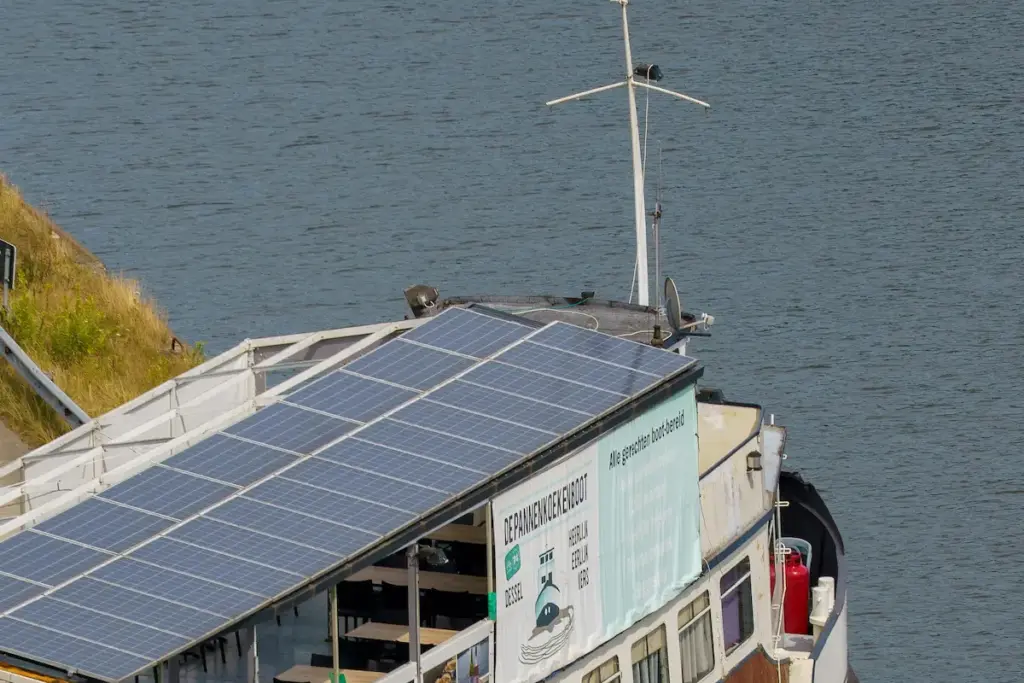

Marine solar panels are photovoltaic systems adapted for the saltwater environment, capable of supplying auxiliary power to vessels ranging from offshore yachts to commercially operated coastal ships. This page covers panel technology, sizing calculations, installation requirements, classification society approval, and how solar PV contributes to CII and EEXI compliance for commercial operators.
The gap between a consumer solar installation and a marine-grade PV system is significant. Saltwater corrosion, UV degradation, vibration, and shade from rigging demand different engineering choices than a rooftop residential array. Getting those choices wrong costs efficiency and accelerates equipment failure.
What types of solar panels are suitable for marine use?
Marine-grade solar panels fall into three categories: monocrystalline rigid panels, polycrystalline rigid panels, and thin-film flexible laminates. Monocrystalline panels deliver the highest power density — typically 21–24% cell efficiency — making them the correct choice where deck space is constrained. Flexible laminates suit curved surfaces but sacrifice both efficiency and long-term durability under sustained UV and heat cycling.
Monocrystalline vs Flexible Panels: Operational Comparison
Monocrystalline panels use a single-crystal silicon cell and produce the highest watt-per-square-metre output available. SunPower Maxeon and similar PERC-based cells reach 22–25% efficiency, which translates directly into more energy from a fixed deck area. Rigid aluminium-framed monocrystalline panels tolerate long-term UV exposure and mechanical loading without degradation patterns seen in laminates.
Flexible thin-film panels use amorphous silicon or CIGS cells bonded to a polymer backing. They conform to bimini tops, curved coach roofs, and non-structural surfaces where a rigid frame cannot be mounted. Their efficiency ranges from 10–18%, and thermal cycling in a marine environment accelerates delamination at the cell layer over a three-to-five-year horizon. They are appropriate for supplementary trickle charging on leisure vessels, not as the primary generation source.
Polycrystalline panels sit between the two — lower cost than monocrystalline, moderate efficiency around 15–17%, and adequate for vessels where deck area is not the limiting factor. For commercial operators making the energy efficiency business case, the additional cost of monocrystalline is typically justified within the first two years of operation. This mirrors the broader argument for high-efficiency technology covered in the site’s analysis of future marine propulsion systems.
How do you calculate the solar panel capacity a vessel needs?
Size a marine solar array by calculating total daily watt-hour (Wh) consumption, then working backwards through system losses to determine the required panel output. The standard calculation: daily load (Wh) ÷ effective sun hours ÷ system efficiency = required panel wattage. Effective sun hours vary from 3 hours at higher latitudes in winter to 6–7 hours in tropical operating areas.
Watt-Hour Sizing: Step-by-Step
Step one: list all DC and AC loads with their wattage and daily run time. Navigation electronics on a 15-metre yacht typically consume 15–25 Ah per day at 12V, equivalent to 180–300 Wh. Refrigeration adds 50–80 Ah (600–960 Wh). Autopilot, chart plotter, VHF, and lighting combined account for another 30–60 Ah depending on watchkeeping hours.
Step two: total the daily Wh demand and apply a system efficiency deduction of 20–25% to account for charge controller losses, wiring resistance, battery charge/discharge efficiency, and panel temperature derating. A 12V system drawing 100 Ah daily (1,200 Wh) requires approximately 1,500–1,600 Wh of raw panel output.
Step three: divide by effective sun hours. In a North Sea operating area with 4 effective peak sun hours, 1,600 Wh ÷ 4 hours = 400W of installed panel capacity as a minimum. In tropical waters with 6 peak sun hours, the same load requires approximately 270W. Always size battery storage to cover at least two days of consumption without solar input — this is the critical safety margin for overcast conditions at sea.
Charge Controllers: PWM vs MPPT
Pulse width modulation (PWM) controllers are low-cost and adequate for small arrays below 200W. Maximum power point tracking (MPPT) controllers extract 10–30% more energy from the same panel by continuously adjusting the electrical load to match peak panel output. On any array above 200W, the efficiency gain from MPPT pays for the controller cost within one season. Marine MPPT units from Victron, Morningstar, and Genasun are IP67-rated for enclosed installation above the waterline.
What installation considerations apply to the marine environment?
Marine solar panel installation must address four primary degradation mechanisms: saltwater corrosion, UV radiation, vibration fatigue, and partial shading from masts, booms, and standing rigging. Each demands specific engineering decisions at the mounting, wiring, and system design stages. Ignoring any one of them results in accelerated failure and reduced energy yield.
Corrosion and UV Resistance
Panel frames must be marine-grade anodised aluminium or 316 stainless steel. Standard commercial solar frames use unpainted aluminium alloy that corrodes within one season in a saltwater wash environment. All mounting hardware — brackets, fasteners, backing plates — must be 316L stainless or hot-dip galvanised with no bi-metallic contact between dissimilar metals.
Junction boxes on the rear of marine panels must carry a minimum IP67 rating. The junction box houses bypass diodes and cable entry points — the most vulnerable point for saltwater ingress. Cables should be double-insulated, tinned-copper marine-grade wire rated for UV exposure, with marine-grade MC4 connectors or equivalent sealed terminations throughout.
UV degradation of panel encapsulant is a long-term efficiency killer. Quality panels use EVA (ethylene vinyl acetate) or POE (polyolefin elastomer) encapsulant with UV stabilisers. Panels intended for permanent marine installation should carry a 25-year linear power output warranty — the same standard applied to commercial land-based installations — not a 10-year product warranty that covers only manufacturing defects.
Vibration and Structural Mounting
Panels mounted on vessels experience vibration from the main engine, wave slamming, and wind loading that does not exist in land applications. Rigid panels must be mounted on rubber-isolated brackets or with vibration-damping mounts between the frame and the mounting surface. Mounting directly to a thin GRP deck without backing plates creates a stress concentration point that will crack the laminate within months.
The mounting angle is a secondary efficiency consideration compared to orientation. On most vessels, a flat or near-flat installation parallel to the deck is acceptable — the efficiency loss versus an optimally tilted array rarely exceeds 10–15% in summer months and is offset by ease of installation and reduced wind loading. Elevated tilted frames that create significant windage are an operational hazard in open water.
Shading and Bypass Diodes
Shading on even one cell of a series-connected string reduces output from the entire string, not just the shaded cell. This is the most underestimated efficiency loss in marine installations. Bypass diodes across cell groups allow current to route around shaded sections — quality marine panels include diodes at cell-group level, not just string level. Plan panel positioning to minimise shadow cast from standing rigging, antennas, and bimini supports across the likely operating hours of 0900–1500.
How do marine solar PV systems contribute to CII and EEXI compliance?
Solar PV cannot propel a commercial vessel, but it can materially reduce auxiliary engine running hours — and that reduction flows directly into the Carbon Intensity Indicator calculation. The CII measures grams of CO2 per cargo capacity-mile. Reducing auxiliary fuel consumption reduces total CO2 emissions for the same cargo movement, improving the CII rating. Full details of the CII rating scheme and rating thresholds are covered in the dedicated explanation of the CII and CII Rating Scheme.
The Energy Efficiency Existing Ship Index (EEXI) is a one-time technical rating calculated at a snapshot in time, not an operational metric. Solar PV does not improve EEXI directly because EEXI is based on the installed propulsion and auxiliary machinery configuration, not operational fuel savings. However, vessels that fail EEXI thresholds and require an Engine Power Limitation (EPL) as a corrective measure sometimes pair EPL with solar PV to maintain operationally acceptable hotel load capability without the main generator running at full output.
The EU Emissions Trading System for shipping, effective from 2024, creates a direct financial incentive for any auxiliary fuel reduction. Each tonne of CO2 avoided translates into an ETS allowance not purchased. A 50kW solar array on a coastal tanker generating 200–250 kWh per day at anchor reduces generator running by 2–3 hours daily, saving 60–80 litres of MGO and approximately 160–210 kg CO2 — a meaningful ETS exposure reduction over a full year. The financial mechanics are explained in the analysis of the EU Emissions Trading System in shipping.
Solar PV works most effectively as part of a layered decarbonisation approach. On vessels where the operational profile includes extended periods at anchor or slow steaming, solar supplements battery storage systems and reduces genset cycling. This is the same architectural logic behind wind-assisted propulsion systems, which target main engine fuel consumption, while solar targets auxiliary load — the two measures are complementary, not competing.
What is the class society approval process for marine solar installations?
Classification society approval for marine solar PV is required on classed vessels when the installation affects the electrical system beyond a defined power threshold, or when panels are mounted in locations that could affect structural integrity or fire safety. DNV, Lloyd’s Register, Bureau Veritas, and ABS each have specific notations and technical requirements for solar power installations.
Type Approval vs Installation Survey
Type approval covers the solar panels, charge controllers, inverters, and protection devices as individual equipment items. Type-approved equipment has been tested to IEC 61730 (photovoltaic module safety) and IEC 61215 (performance testing) at minimum. DNV’s type approval programme additionally tests panels to DNV-ST-0038 environmental requirements covering salt mist, vibration, thermal cycling, and humidity — the relevant standard for marine applications. Equipment without DNV or equivalent class type approval should not be installed on classed vessels.
Installation survey is a separate process from type approval. The class surveyor assesses the physical installation: cable routing, protection against short circuit and overcurrent, isolation arrangements, and integration with the vessel’s main switchboard. On vessels carrying the DNV Shipping for the Future notation or BV HyQuality mark, solar installations form part of the overall sustainability package and require documented energy balance calculations submitted with the design drawings.
IACS Framework and Flag State Requirements
The International Association of Classification Societies does not currently publish a unified requirement (UR) specifically for marine solar PV — requirements are implemented at society level. All IACS member societies require electrical installations to comply with IEC 60092 (Electrical Installations in Ships) as the baseline standard, within which solar PV is classified as a low-voltage DC generating source. Cable sizing, protection coordination, and earthing follow IEC 60092-202 and IEC 60092-304 respectively.
Flag state administrations may have additional requirements for solar installations on vessels under their jurisdiction. Vessels flagged under Paris MOU member states are subject to Port State Control inspection of electrical systems, and improperly installed solar equipment has generated deficiency codes under SOLAS Chapter II-1 relating to electrical installations. Ensure compliance is documented in the vessel’s electrical maintenance records and available for PSC inspection.
For leisure vessels not subject to class survey, the applicable standard is IEC 62109 (safety of power converters) and ABYC E-11 (AC and DC electrical systems on boats) in North American waters. European leisure craft must comply with the Recreational Craft Directive (EU Directive 2013/53/EU) Annex I.6 covering electrical systems. The operational context for small commercial and leisure vessels is also addressed in the site’s overview of sustainable shipping practices.
How do solar panels perform differently on leisure versus commercial vessels?
On a leisure sailing yacht or motor cruiser, solar PV is the primary renewable charging source and is typically sized to maintain hotel loads indefinitely without running the engine or generator at anchor. On a commercial vessel, the operational context is fundamentally different — the main generator runs continuously at sea, and solar functions as an auxiliary load-reduction measure rather than a primary power source.
A 15-metre cruising yacht with modest electronics and refrigeration requires 400–600W of panels and a 200–400 Ah battery bank to achieve genuine energy independence at anchor in Mediterranean latitudes. The same output on a 3,000 GT coastal tanker running a 500kW hotel load represents less than 0.1% of the vessel’s auxiliary demand — useful for emission compliance calculations but not operationally significant without scale.
Commercial ferry operators in Scandinavian waters have demonstrated that roof-mounted solar arrays of 50–100 kW on RoPax ferries reduce annual auxiliary fuel consumption by 5–8%, measurable against the vessel’s data collection system under the IMO Data Collection System (DCS). Combined with LNG or dual-fuel main engines, the combined fuel saving is significant at the fleet level. The integration of alternative fuels with solar auxiliary systems is explored further in the analysis of dual-fuel engines on ships.
Offshore support vessels and anchor handlers operating in the North Sea have adopted solar arrays for accommodation block power during port stays and DP standby operations. This targets the specific operating profile where the vessel is stationary with main engines at reduced output and hotel load is a higher proportion of total fuel consumption. The payback period on a correctly sized system in this application is typically four to six years at current MGO prices.
Frequently Asked Questions
Do marine solar panels work in overcast conditions?
Yes, but at significantly reduced output. Monocrystalline panels generate approximately 10–25% of rated wattage under overcast Northern European skies compared to full direct sun. This is why battery storage sized for two days of consumption without solar input is the minimum safe design requirement for ocean passages.
Can solar panels fully replace a generator on a sailing yacht?
On a well-optimised cruising yacht with LED lighting, efficient refrigeration, and modest navigation electronics, a 600–800W array can maintain a 400 Ah lithium battery bank in tropical and Mediterranean conditions without generator use at anchor. In Northern Europe or on extended passages under sail, the generator remains necessary for battery recovery.
What maintenance do marine solar panels require?
Marine panels require periodic cleaning to remove salt crust, bird fouling, and algae, which can reduce output by 10–20% if left unaddressed. Inspect junction boxes and cable terminations annually for corrosion ingress. Check mounting brackets for galvanic corrosion at dissimilar metal contacts. Test each panel’s open-circuit voltage annually to identify cell degradation.
Are flexible solar panels suitable for long-distance ocean passages?
Flexible laminates are appropriate for supplementary trickle charging but not as a primary generation source on ocean passages. Sustained thermal cycling, UV exposure, and rigging vibration delaminate the cell layer within two to four years in harsh marine conditions. For bluewater cruising, monocrystalline rigid panels with proper marine-grade mounting are the correct specification.
What wiring standard applies to solar installations on commercial vessels?
IEC 60092-202 and IEC 60092-304 govern DC electrical installations on classed commercial vessels. Cable cross-section must be calculated to limit voltage drop to 3% maximum under full load. All DC circuits above 50V must have overcurrent protection rated for DC interrupting capacity — standard AC circuit breakers are not rated for DC arc interruption.
Does DNV offer a specific class notation for solar PV installations?
DNV’s Shore Power, Energy Efficiency, and Shipping for the Future notations can include solar PV as a qualifying measure. Equipment must be type-approved to DNV-ST-0038 or IEC 61730/61215 as a minimum. The installation survey assesses integration with the vessel’s electrical system per DNV Rules Part 4 Chapter 8 covering electrical installations.
Can solar PV be retrofitted to an existing classed vessel without class approval?
No, not if the system exceeds minor installation thresholds or connects to the vessel’s main electrical distribution. Any modification to a classed vessel’s electrical system that is not submitted to the classification society as a minor repair voids class compliance for that system. Submit design drawings and equipment type approval certificates to the relevant class society before installation proceeds.
