Slop Tanks: What They Are and Why They Matter

Author:

Updated:

Slop tanks are an important component of ships and oil refineries. These tanks are designed to store the residual oil and sludge generated during the cleaning of cargo tanks. Slop tanks are also used to collect excess oil that is not required for further processing or refining.

Understanding slop tanks is crucial for ship owners and operators as well as for those working in the oil and gas industry. The working principle of slop tanks involves the separation of oil and water using gravity.

The oil is collected at the top of the slop tank while the water is drained out from the bottom. The design and construction of slop tanks are critical to ensure that they can withstand the harsh marine environment and prevent oil spills.

Slop Tanks on oil tankers

Key Takeaways

  • Slop tanks are used in ships and oil refineries to store residual oil and sludge generated during the cleaning of cargo tanks.
  • The working principle of slop tanks involves the separation of oil and water using gravity.
  • The design and construction of slop tanks are critical to ensure that they can withstand the harsh marine environment and prevent oil spills.

Understanding Slop Tanks

Slop tanks are a vital component of oil tankers, used to collect drainage, tank washings, and other oily mixtures. They are designed to prevent pollution of the sea by preventing the discharge of oily waste into the ocean.

Slop tanks are constructed to meet the requirements of Regulation 29 of the International Convention for the Prevention of Pollution from Ships (MARPOL). This regulation mandates that oil tankers of 150 gross tonnage and above must be provided with slop tank arrangements in accordance with the requirements of paragraphs 2.1 to 2.3.

Slop tanks are typically located at the bottom of the vessel, and they are designed to collect the oily waste that accumulates during the voyage. The collected waste is then transferred to shore facilities for treatment and disposal.

The capacity of slop tanks varies depending on the size of the vessel, the type of cargo, and the voyage duration. Typically, slop tanks are designed to hold between 5% to 10% of the total cargo capacity of the vessel.

Slop tanks are essential for the safe and efficient operation of oil tankers. They help to prevent pollution of the sea, protect marine life, and maintain the integrity of the vessel.

Working Principle of Slop Tanks

Slop tanks are an essential part of oil tankers and other ships that carry oil. They are designed to collect oily mixtures, such as tank washings, drainings, and other oil residues, that are generated during cargo operations. The collected mixture is then stored in the slop tank, which is a separate tank from the cargo tanks.

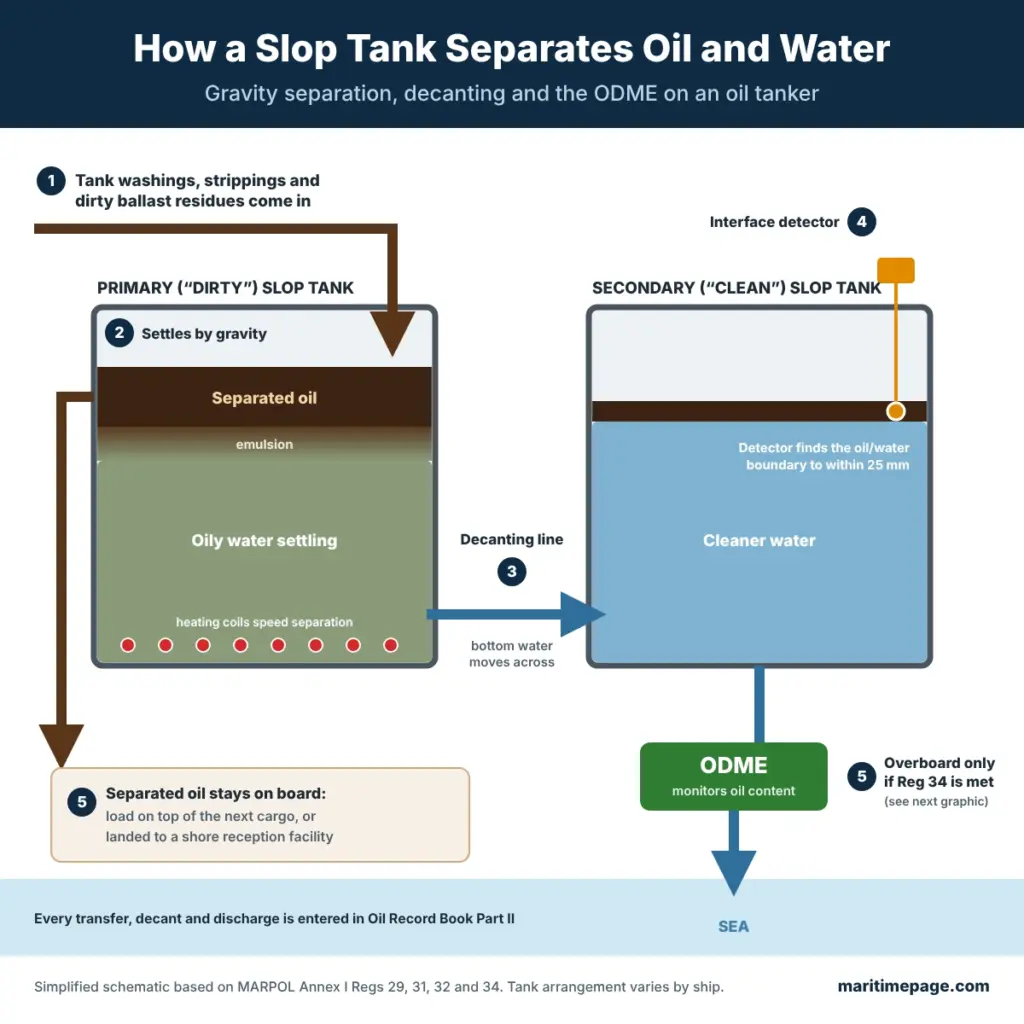

The working principle of slop tanks is simple. The oily mixture is collected from various sources, such as cargo tanks, pipelines, and pumps, and is directed to the slop tank. The slop tank has a specific capacity, and once it reaches its limit, it must be emptied. The contents of the slop tank are then transferred to a shore-based facility, where they are treated and disposed of according to local regulations.

Slop tanks are equipped with various features that help in the efficient operation of the system. Some of these features include:

  • Separate inlet and outlet connections to minimize turbulence and the creation of emulsions.
  • Automatic closure of the drain valve if oil or fuel is detected in the water stream.
  • Level sensors to monitor the level of the slop tank and prevent overfilling.

The use of slop tanks is mandatory for oil tankers of 150 gross tonnage and above, as per the regulations of the International Maritime Organization (IMO). The slop tanks must be constructed in accordance with the requirements of the IMO and must be maintained in good condition at all times.

YouTube player

In conclusion, slop tanks play a crucial role in preventing the discharge of oily mixtures into the sea, thereby protecting the marine environment. The proper operation and maintenance of slop tanks are essential to ensure their effectiveness and compliance with regulations.

Design and Construction of Slop Tanks

Material Selection

The material selection for slop tanks is a critical aspect of the design process. The material must be able to withstand the corrosive nature of slop, which is a mixture of oil and water.

The most common materials used for slop tanks are stainless steel, coated steel, and epoxy-coated steel. Stainless steel is the most expensive but offers the best resistance to corrosion. Coated steel is a more affordable option that provides good corrosion resistance. Epoxy-coated steel is a popular choice because it offers excellent chemical resistance and durability.

Design Parameters

The design parameters for slop tanks are outlined in Regulation 29 of the International Convention for the Prevention of Pollution from Ships (MARPOL).

The regulation specifies the minimum requirements for slop tanks, including their size and capacity. The size and capacity of the slop tanks depend on the size of the oil tanker. The regulation also specifies the design of the piping and valves used to transfer slop from the cargo tanks to the slop tanks.

Construction Techniques

The construction techniques used for slop tanks must ensure that the tanks are leak-proof and able to withstand the corrosive nature of slop. The tanks are usually constructed using welding techniques, and the welds must be of high quality to prevent leaks.

The tanks are also coated with a protective layer to prevent corrosion. The coating is usually epoxy-based, and it is applied in multiple layers to ensure maximum protection.

In addition to the construction of the slop tanks, the piping and valves used to transfer slop must also be constructed to a high standard. The piping and valves must be able to withstand the corrosive nature of slop and must be designed to prevent leaks. The valves used to transfer slop must be of the self-closing type to prevent accidental spills.

Overall, the design and construction of slop tanks are critical to preventing pollution from ships. The material selection, design parameters, and construction techniques must be carefully considered to ensure that the slop tanks are leak-proof and able to withstand the corrosive nature of slop.

Regulations and Standards for Slop Tanks

International Regulations

Slop tanks are an essential part of oil tanker operations and are subject to various international regulations. The International Convention for the Prevention of Pollution from Ships (MARPOL) sets out specific requirements for slop tanks on board oil tankers.

According to Regulation 29 of MARPOL Annex I, oil tankers of 150 gross tonnage and above must be provided with slop tank arrangements in accordance with the requirements of paragraphs 2.1 to 2.3 of this regulation.

The regulation also specifies the minimum capacity of slop tanks, which must be sufficient to retain oily mixtures from cargo tank washings, oil residue, and ballast water containing an oily mixture of 3 percent or more of the oil carrying capacity.

In addition to MARPOL, the International Maritime Organization (IMO) has also developed guidelines for the design and construction of slop tanks.

The IMO’s Guidelines for the Design and Construction of Slop Tanks, published in 1995, provide detailed guidance on the design, construction, and operation of slop tanks on board oil tankers. The guidelines cover topics such as tank location, capacity, construction materials, and discharge arrangements.

Local Regulations

In addition to international regulations, slop tanks are also subject to local regulations in many countries. These regulations may vary depending on the country and the type of vessel. For example, in the United States, the U.S. Coast Guard sets out specific requirements for slop tanks in Title 33 of the Code of Federal Regulations (CFR). According to 33 CFR 157.15, a tank vessel must have a certain number of slop tanks that comply with the requirements of this section, depending on the size and age of the vessel. The regulation also specifies the minimum capacity of slop tanks, which must be sufficient to retain oily mixtures from cargo tank washings, oil residue, and ballast water containing an oily mixture of 3 percent or more of the oil carrying capacity.

Other countries may have their own regulations for slop tanks, which may be more or less stringent than international or U.S. regulations. It is important for vessel operators to be aware of the regulations in their own country and in any countries where they may be operating. Failure to comply with these regulations can result in fines, penalties, and other legal consequences.

Safety Measures in Slop Tanks

Slop tanks are an important part of oil tankers and are used to collect the residual oil and other impurities that accumulate in the cargo tanks during loading and unloading operations. These tanks are designed to prevent pollution of the environment and ensure the safety of the crew and the vessel. In this section, we will discuss the safety measures that are implemented in slop tanks.

Safety Devices

Slop tanks are equipped with various safety devices to prevent accidents and ensure safe operations. The following are some of the safety devices that are commonly installed in slop tanks:

  • High-Level Alarms: These alarms are installed to alert the crew when the slop tank reaches its maximum capacity. This prevents overfilling of the tank, which could lead to spills and environmental pollution.

  • Pressure Relief Valves: These valves are used to release excess pressure that may build up inside the slop tank. This prevents the tank from rupturing or exploding due to high pressure.

  • Flame Arrestors: These devices prevent the ignition of flammable vapors that may be present in the slop tank. They are installed on the tank vents to prevent sparks or flames from entering the tank.

Maintenance and Inspection

Proper maintenance and inspection of slop tanks are essential to ensure their safe operation. The following are some of the maintenance and inspection procedures that are carried out on slop tanks:

  • Regular Cleaning: Slop tanks must be cleaned regularly to remove any accumulated sediments or sludge. This prevents the buildup of harmful substances that could contaminate the environment.

  • Inspection of Safety Devices: The safety devices installed in slop tanks must be inspected regularly to ensure that they are functioning properly. Any malfunctioning devices must be repaired or replaced immediately.

  • Testing of Tank Atmosphere: The atmosphere inside the slop tank must be tested regularly to ensure that it is safe for crew members to enter. This is done to detect any toxic or flammable gases that may be present inside the tank.

In conclusion, slop tanks are an important safety feature of oil tankers. The safety devices and maintenance procedures implemented in slop tanks ensure the safety of the crew and the environment. Regular inspection and maintenance of these tanks are essential to ensure their safe operation.

Environmental Impact of Slop Tanks

Slop tanks are an essential component of oil storage tanks on ships. They are used to collect and store residues from tank washing, oil residue, and ballast water containing oily mixtures. However, the use of slop tanks can have an environmental impact. This section will discuss the environmental impact of slop tanks and the measures taken to mitigate the impact.

Waste Management

The residues collected in slop tanks are usually pumped into a reception facility in the port. The residues are then treated, and the water is separated from the oil. The oil is then recycled, and the water is discharged into the sea. However, the discharge of water can have a negative impact on the environment. The water may contain pollutants that can harm marine life and the ecosystem.

To mitigate the impact, ships are required to have an oil-water separator system that separates the oil from the water. The system must be certified by the International Maritime Organization (IMO) and must meet the requirements of the Marpol Convention. The Marpol Convention sets limits on the amount of oil that can be discharged into the sea.

Emission Control

Slop tanks can also contribute to air pollution. When the tanks are being emptied, the fumes released can contain volatile organic compounds (VOCs) that can harm the environment and human health. To mitigate the impact, ships are required to have an emission control system that reduces the release of VOCs into the air.

The emission control system can use a variety of technologies, including scrubbers, filters, and catalytic converters. Scrubbers use water to remove pollutants from the exhaust gas, while filters use a physical barrier to trap pollutants. Catalytic converters use a chemical reaction to convert pollutants into less harmful substances.

In conclusion, slop tanks can have an environmental impact, but measures are taken to mitigate the impact. The use of an oil-water separator system and an emission control system can reduce the discharge of pollutants into the sea and the release of VOCs into the air.

Frequently Asked Questions

What is the meaning of slop tank as defined by MARPOL?

As per the International Convention for the Prevention of Pollution from Ships (MARPOL), a slop tank is a tank designated for the collection and storage of oily mixtures generated by cargo tank cleaning or other operations. These tanks are also known as dirty oil tanks or cargo tank wash water tanks.

What is the use of a slop tank?

The primary use of a slop tank is to collect and store oily mixtures generated during cleaning or other operations on board a ship. This helps prevent the discharge of these mixtures into the sea, which can cause pollution.

What are the requirements for a slop tank?

The requirements for a slop tank depend on the size of the vessel. According to 33 CFR § 157.15, a tank vessel must have at least one slop tank if it is less than 70,000 tons DWT, and at least two slop tanks if it is 70,000 tons DWT or more. These tanks must comply with the regulations set forth in the section.

What is the capacity of a slop tank?

The capacity of a slop tank is also dependent on the size of the vessel. As per the same regulation, the capacity of a slop tank must be at least 3% of the cargo tank capacity for vessels less than 25,000 tons DWT, and at least 2% of the cargo tank capacity for vessels 25,000 tons DWT or more.

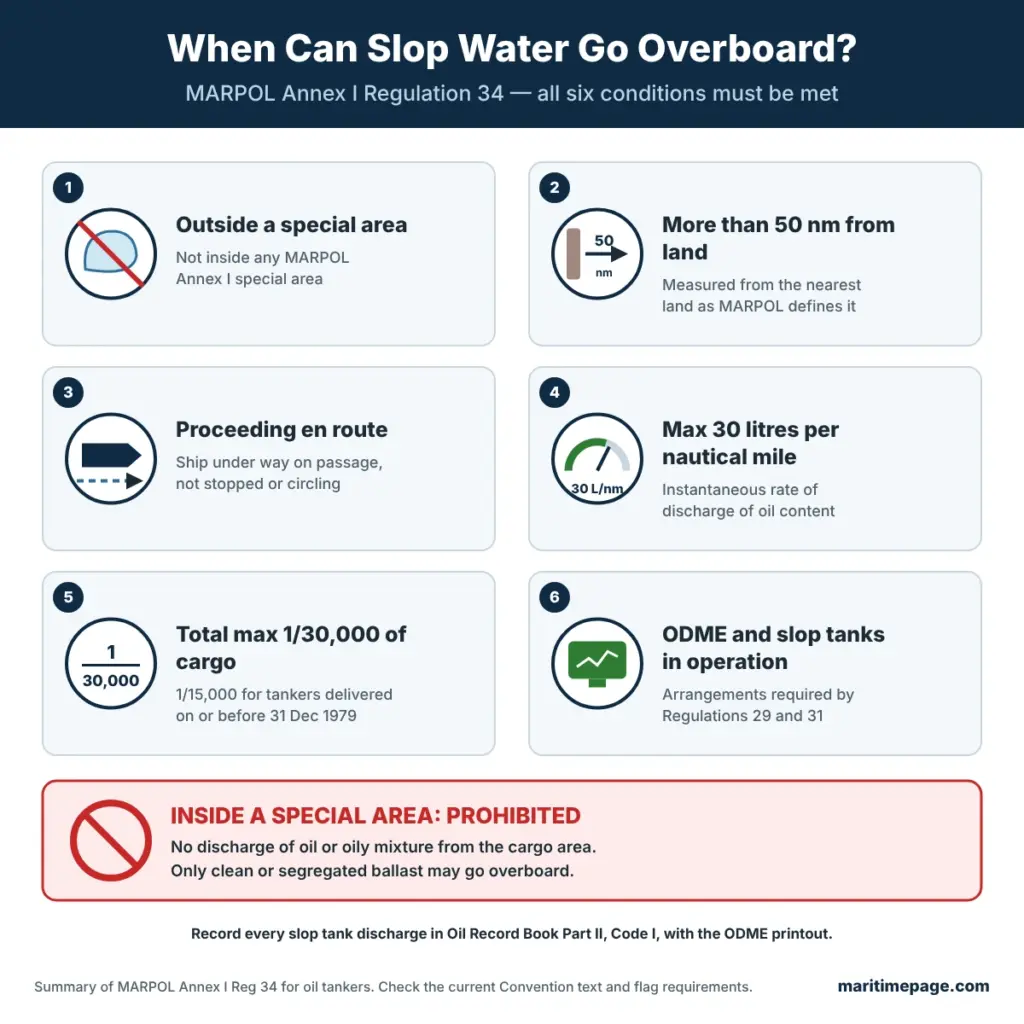

What are the discharge criteria for a slop tank?

The discharge criteria for a slop tank are also regulated by MARPOL. The oily mixture in the slop tank must be disposed of in a way that does not harm the environment. This can be done either by discharging the mixture into a reception facility or by using an onboard incinerator.

What is the difference between a slop tank and a sludge tank?

A slop tank is designed to collect and store oily mixtures generated during cleaning or other operations on board a ship. A sludge tank, on the other hand, is designed to collect and store the residue from the fuel oil and lubricating oil systems. The sludge is generated as a result of the purification of fuel oil and lubricating oil.
